RTRLED™ 12V/24V IP20 COB Flexible LED Strip (4mm/5mm PCB)
Product Overview
The RTRLED™ Roll-to-Roll COB LED Strip is a versatile, high-density linear lighting solution engineered for professional integration. Operating on 12V or 24V DC systems, this series offers dual PCB width configurations (4mm and 5mm) and robust power outputs up to 10W/M. Utilizing advanced Chip-on-Board technology, it delivers powerful, perfectly uniform, and dot-free illumination. It serves as an excellent high-efficacy light source for bespoke 3D-printed lamps, premium millwork, retail showcases, and architectural accents.
Key Features & Benefits
- Seamless Linear Luminance: Featuring a dense layout of 400 LEDs per meter under a continuous phosphor layer, it creates an unbroken, smooth line of light with absolutely zero dark spots or pixelation.
- Dual Width & Power Options: Available in 4mm and 5mm PCB widths with 7W/M or 10W/M power ratings, giving you the flexibility to choose between compact footprints and high-brightness outputs.
- Professional 12V/24V Engineering: Designed for higher voltage stability, effectively mitigating voltage drop over extended runs and ensuring uniform brightness from end to end.
- Museum-Grade Color Fidelity: With a Color Rendering Index of Ra ≥ 90, this strip ensures brilliant and true-to-life color reproduction, making textures and shapes look premium.
- Optimized Cutting Increments: Engineered for precise customization with a ultra-short 10mm cutting unit for 12V configurations and a 20mm cutting unit for 24V configurations.

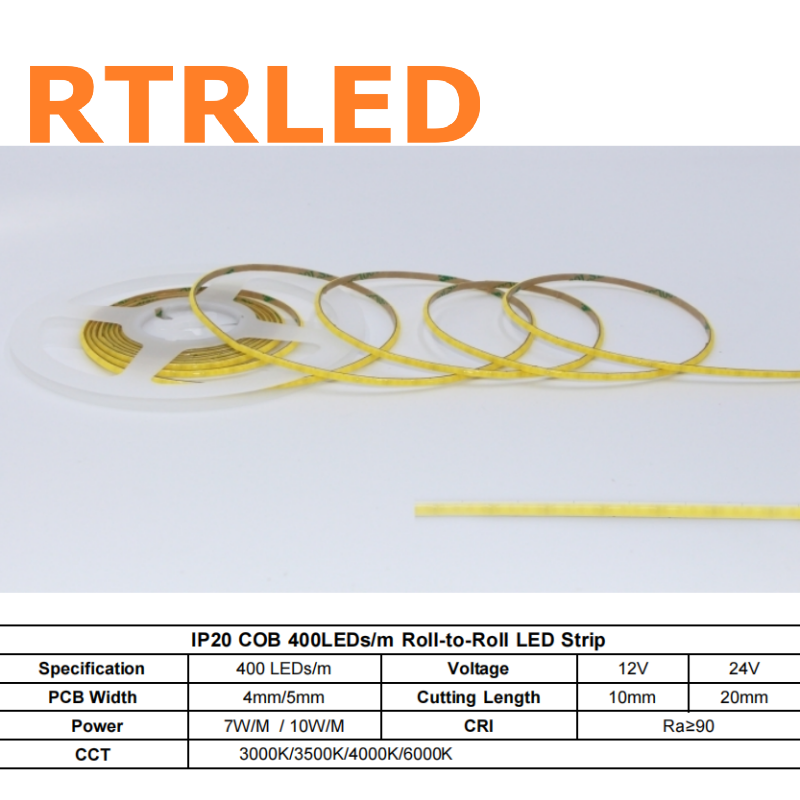

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | IP20 COB Roll-to-Roll LED Strip |
| LED Density | 400 LEDs/m |
| Operating Voltage | 12V DC / 24V DC |
| Available PCB Widths | 4mm / 5mm |
| Power Consumption | 7 W/M / 10 W/M |
| Cutting Length | 10mm (for 12V) / 20mm (for 24V) |
| Color Rendering Index (CRI) | Ra ≥ 90 |
| Color Temperature (CCT) | 3000K / 3500K / 4000K / 6000K |
| IP Rating | IP20 (Indoor/Enclosed Use) |
Applications
- High-End 3D-Printed Fixtures: Provides an intense and smooth internal lighting core for structural and sculptural lamps requiring reliable high-voltage dimming.
- Premium Millwork & Cabinetry: The slim 4mm/5mm width sits discreetly inside compact tracks under shelves, inside wardrobes, or along countertops.
- Commercial Display Lighting: Delivers shadow-free, high-CRI accentuation for premium merchandise, jewelry cases, and gallery exhibits.
