PCB Width 5mm DC5V IP20 COB 400LEDs/m Roll-to-Roll LED Strip
PCB Width 5mm DC5V IP20 COB 400LEDs/m Roll-to-Roll LED Strip
Quantity

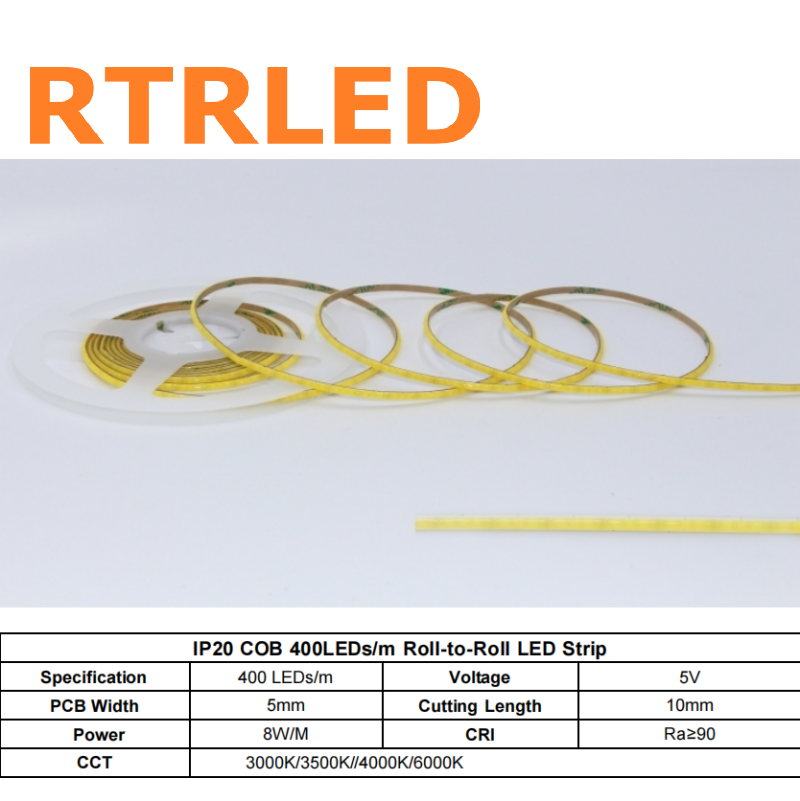

RTRLED™ 5V IP20 COB Flexible LED Strip (5mm PCB / 8W)
Product Overview
The RTRLED™ Roll-to-Roll COB LED Strip is a high-density, high-efficiency linear lighting solution designed for premium illumination in compact spaces. Upgraded to a 5mm PCB width and an optimal 8W/M power output, this 5V DC low-voltage strip delivers brighter, perfectly uniform, and dot-free light. It serves as an ideal premium light source for 3D-printed decorative lamps, custom cabinetry, commercial displays, and architectural linear accents.
Key Features & Benefits
- Premium Continuous Glow: Featuring COB (Chip-on-Board) technology with 400 LEDs per meter, it emits a smooth, seamless linear light with absolutely no dark spots or pixelation.
- Enhanced Brightness (8W/M): Optimized at 8W per meter to provide higher lumen output, making it perfect for applications that require vibrant illumination without sacrificing space.
- Compact 5mm PCB Footprint: The slim 5mm width offer excellent flexibility, fitting effortlessly into standard aluminum profiles and narrow custom housing channels.
- Superior Color Accuracy: With a Color Rendering Index of Ra ≥ 90, it reveals true-to-life colors, drastically improving the visual texture and aesthetic value of finished products.
- Ultra-Precise Cutting: A short cutting unit of just 10mm ensures maximum adaptability for bespoke lengths and reduces material waste during installation.
- Safe 5V DC Low Voltage: Operates safely on 5V DC, ensuring exceptionally low thermal generation and perfect compatibility with standard 5V USB drivers and portable power sources.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | IP20 COB Roll-to-Roll LED Strip |
| LED Density | 400 LEDs/m |
| Operating Voltage | 5V DC |
| PCB Width | 5mm |
| Power Consumption | 8 W/M |
| Minimum Cutting Length | 10mm |
| Color Rendering Index (CRI) | Ra ≥ 90 |
| Color Temperature (CCT) | 3000K / 3500K / 4000K / 6000K |
| IP Rating | IP20 (Indoor/Enclosed Use) |
Applications
- Premium 3D-Printed & Accent Lamps: Ideal as a high-brightness internal light core for decorative and night lights.
- Showcase & Retail Displays: Fits discreetly under shelves and inside glass cabinets to highlight merchandise with true color rendering.
- Custom Hospitality Lighting: Perfect for linear micro-profiles embedded in walls, ceilings, or furniture accents.
